NPJ518ND Two-Lug Double Wing Miniature Nut Plate Jig (DWM)

Omega Technologies

NPJ518ND Two-Lug Double Wing Miniature Nut Plate Jig (DWM)

Price: $39.00

Part Number: NPJ518ND

NPJ518ND Two-Lug Double Wing Miniature Nut Plate Jig (DWM). (C)Hole Spacing: 0.2500” (J) Hole Spacing: 0.5000” (P) Pilot Diameter: 0.1910” (K) Drill Size: #40

NPJ518ND Two-Lug Double Wing Miniature Nut Plate Jig (DWM) Description

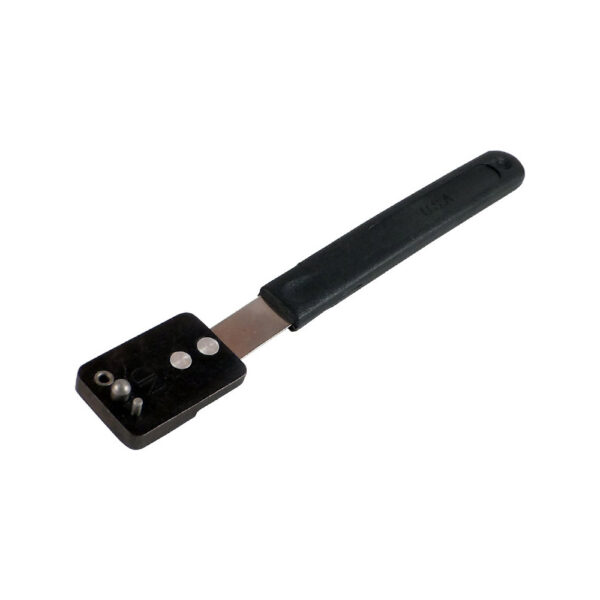

NPJ518ND Two-Lug Double Wing Miniature Nut Plate Jig (DWM) is designed to facilitate accurate rivet hole drilling for standard plate nuts (also known as Anchor Nuts Or Nut Plates). NPJ518ND Two-Lug Double Wing Miniature Nut Plate Jig (DWM) is manufactured to precise tolerances and include drill bushings to reduce wear and assure consistent hole-spacing. Each tool features an ergonomically designed handle with a flexible stainless spring blade, allowing for clearance while the jig is in use.

Omega Technologies Catalog Page: 46

Technical Specifications

Additional information

(C) Hole Spacing	0.25''
(J) Hole Spacing	0.5''
(P) Pilot Diameter	0.191''
(K) Drill Size	#40
Suitable for Nut Plates	BACN10JN3, BACN10JP3, MK1000-3, MS21069-3, MS21070-3, MS21075-3, MS21076-3, NAS697N-3
