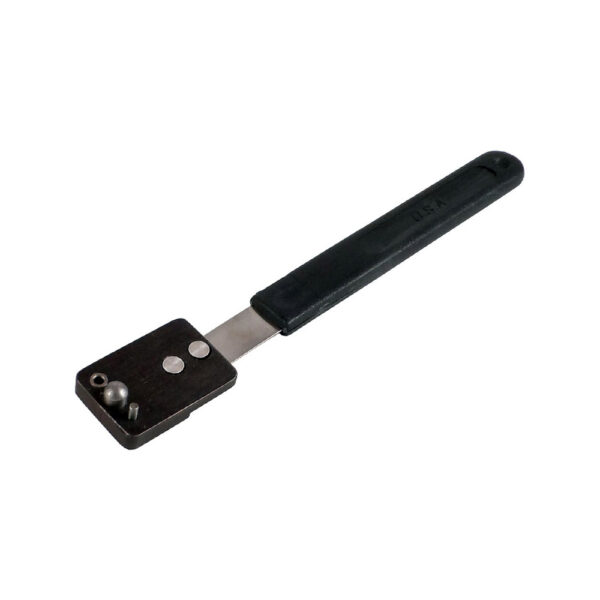

NPJ518NE Two-Lug Double Wing Miniature Nut Plate Jig (DWM). (C)Hole Spacing: 0.2810” (J) Hole Spacing: 0.5620” (P) Pilot Diameter: 0.2480” (K) Drill Size: #40
NPJ518NE Two-Lug Double Wing Miniature Nut Plate Jig (DWM) is designed to facilitate accurate rivet hole drilling for standard plate nuts (also known as Anchor Nuts Or Nut Plates). NPJ518NE Two-Lug Double Wing Miniature Nut Plate Jig (DWM) is manufactured to precise tolerances and include drill bushings to reduce wear and assure consistent hole-spacing. Each tool features an ergonomically designed handle with a flexible stainless spring blade, allowing for clearance while the jig is in use.
Omega Technologies Catalog Page: 46
| (C) Hole Spacing | 0.281'' |
|---|---|
| (J) Hole Spacing | 0.562'' |
| (P) Pilot Diameter | 0.248'' |
| (K) Drill Size | #40 |
| Suitable for Nut Plates | BACN10JN4, BACN10JP4, MK1000-4, MS21069-4, MS21070-4, MS21075-4, MS21076-4, NAS697N-4 |
| Equivalent Part Numbers | AT518NE |
