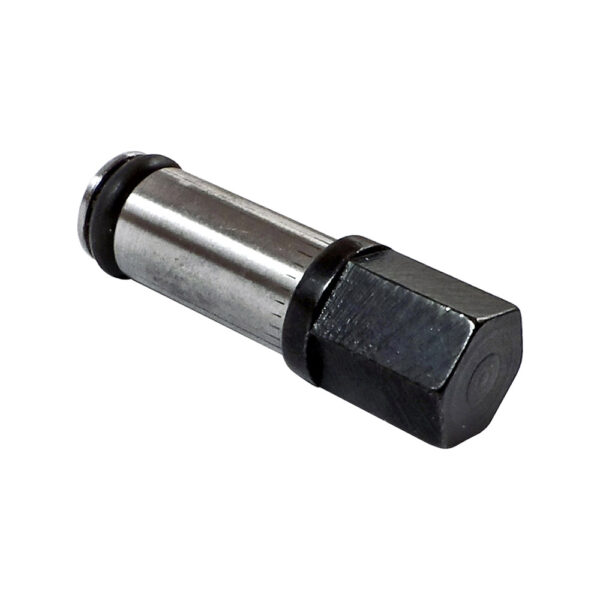

RRQC-HX1/4 Roller Ratchet Spindle

Price: $32.00

Part Number: RRQC-HX1/4

RRQC-HX1/4 Roller Ratchet Spindle. Integral 1/4” Hex Drive replacement spindle for standard RR-40 Roller Ratchets®.

RRQC-HX1/4 Roller Ratchet Spindle Description

RRQC-HX1/4 Roller Ratchet Spindle Integral 1/4” hex drive replacement for standard RR-40 Roller Ratchets®. Replaceable spindles from Omega Technologies can be used with Omega Technologies’ Roller Ratchet® for both installation and removal purposes.

Hold the Roller Ratchet® in hand with the thumb pressing firmly on the back of the spindle, rotate the spindle and gently twist and pull, thus removing the spindle. It can then be replaced with a variety of other spindles or simply be made to function in the opposite direction by rotating the Roller Ratchet® 180° and inserting the spindle.

To replace the spindle, hold the Roller Ratchet® in hand, firmly press the spindle into the bearing or clutch. Once the O-ring meets the bearing begin rotating the spindle until it clicks into place. Firm pressure is required.

Omega Technologies Hi-Lok Installation Tools Digital CatalogOmega Technologies Hi-Lok Installation Tools Digital Catalog

Technical Specifications

Additional information

Hex Drive

1/4''

RRQC-HX1/4 Roller Ratchet Spindle

RRQC-HX1/4 Roller Ratchet Spindle Integral 1/4” hex drive replacement for standard RR-40 Roller Ratchets®. Replaceable spindles from Omega Technologies can be used with Omega Technologies’ Roller Ratchet® for both installation and removal purposes.

Hold the Roller Ratchet® in hand with the thumb pressing firmly on the back of the spindle, rotate the spindle and gently twist and pull, thus removing the spindle. It can then be replaced with a variety of other spindles or simply be made to function in the opposite direction by rotating the Roller Ratchet® 180° and inserting the spindle.

To replace the spindle, hold the Roller Ratchet® in hand, firmly press the spindle into the bearing or clutch. Once the O-ring meets the bearing begin rotating the spindle until it clicks into place. Firm pressure is required.

Omega Technologies Hi-Lok Installation Tools Digital CatalogOmega Technologies Hi-Lok Installation Tools Digital Catalog

Additional information

Hex Drive

1/4''
