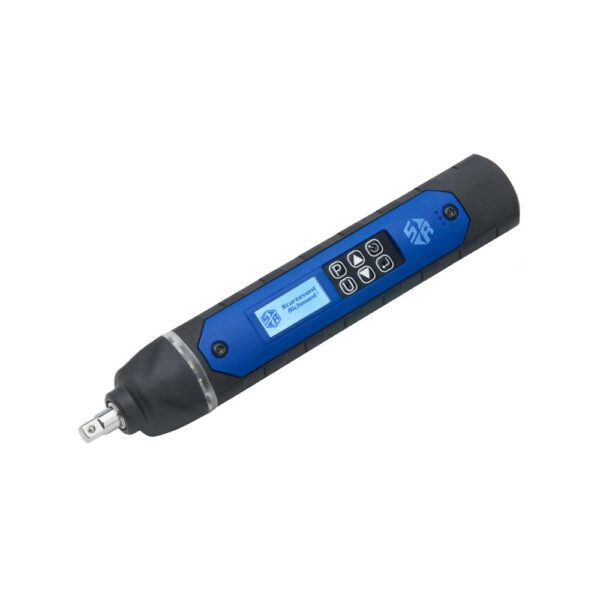

Sturtevant Richmont (10771) Exacta 1350 TDM Radio Equipped Digital Torque & Angle Screwdriver Description

The 1350 Series TD Digital Torque and Angle Torque Drivers bring a new level of torque control and accuracy to your low torque applications. Here is a quick list of features that help make your low torque applications error-free.

Sturtevant Richmont Exacta 1350 Radio Equipped Digital Torque & Angle Screwdriver Features:

• The Exacta 1350 Series TD is compatible with the Global 400 and Global 400mp controllers.
• Meets/exceeds ASME B107.300-2010 and ISO 6789
• Bi-directional +/- 2% Indicated Value from 5% to 100% of tool capacity.
• The 80 inch-pound driver range is 4 to 80 inch-pounds.
• The 100 inch-ounce driver range is 5 to 100 inch-ounces.
• All torque and angle settings are set using the Global 400 or Global 400mp. Error proofing feature: parameters cannot be set using the buttons on the torque screwdriver. This prevents any inadvertent P-Set changes and protects your assembly process integrity.
• You can pair this tool with multiple P-Sets at different torque or torque and angle values because it is a digital tool. This can be used to replace multiple preset tools.
• TAM function (Torque and Angle Monitoring) provides you with ”double hit” protection. If a fastener reaches torque without the required degrees of rotation the fastener is rejected as non-compliant.
• Torque and angle functionality can also alert the operator if a gasket or washer is missing because it shows changing joint conditions.
• The display backlight is visible when torque is applied. Displays the torque and angle value on the digital display on the screwdriver.
• Visible from any angle, the light band on the driver turns yellow, then green, the driver beeps, and the body vibrates when target torque is achieved.
• Units of measure: in-oz, in-lb, ft-lb, cNm, NM, cmkg
• Modes of operation: Peak, TAM, T2A, Residual, Prevailing Torque
