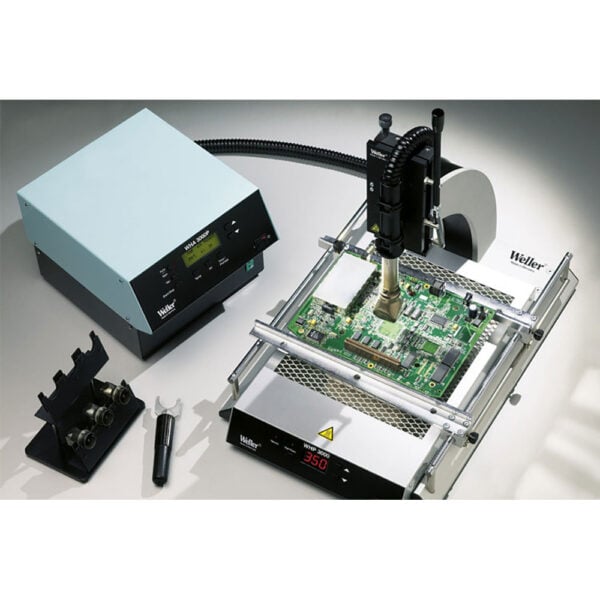

Weller WHA3000PSN Digital Hot Air Rework System

Price: Price On Request

Part Number: WHA3000PSN

Weller Digital Hot Air Rework System. Dimensions: 9.5” x 10.6” x 6.7” Power Consumption: 700W Voltage 120V Vacuum Pressure -0.6 bar Air Flow Volume 5 l/min. 50 l/min Temperature Range: 150F – 999F (50C – 550C)

Weller WHA3000PSN Digital Hot Air Rework System Description

Weller WHA3000PSN Digital Hot Air Rework System can work on larger dual in line and quad pack components due to its 700 watts of power. The Weller WHA3000PSN Digital Hot Air Rework System features an ion trap which assures that only ESD safe hot air is directed at the component and to ensure process repeatablitiy, up to 10 thermal profiles can be stored in memory. The Weller WHA3000PSN Digital Hot Air Rework System holds circuit boards up to 310 mm x 320 mm for outstanding versatility and the IR heating plate has a total heated area of 120 mm x 190 mm with 3 ceramic elements for controlled, even heat. The set and read temperatures are digitally displayed, while an external sensor can be connected to display actual temperatures at specific areas of the circuit under repair, to further guard against damage to sensitive components.

Technical Specifications

Additional information

Dimensions

9.5'' x 10.6'' x 6.7''

Power Consumption

700 W

Voltage

120V

Vacuum Pressure

-0.6 bar

Air Flow Volume

5 l/min. 50 l/min

Temperature Range

150F – 999F (50C – 550C)

Weller WHA3000PSN Digital Hot Air Rework System

Weller WHA3000PSN Digital Hot Air Rework System can work on larger dual in line and quad pack components due to its 700 watts of power. The Weller WHA3000PSN Digital Hot Air Rework System features an ion trap which assures that only ESD safe hot air is directed at the component and to ensure process repeatablitiy, up to 10 thermal profiles can be stored in memory. The Weller WHA3000PSN Digital Hot Air Rework System holds circuit boards up to 310 mm x 320 mm for outstanding versatility and the IR heating plate has a total heated area of 120 mm x 190 mm with 3 ceramic elements for controlled, even heat. The set and read temperatures are digitally displayed, while an external sensor can be connected to display actual temperatures at specific areas of the circuit under repair, to further guard against damage to sensitive components.

Additional information

Dimensions

9.5'' x 10.6'' x 6.7''

Power Consumption

700 W

Voltage

120V

Vacuum Pressure

-0.6 bar

Air Flow Volume

5 l/min. 50 l/min

Temperature Range

150F – 999F (50C – 550C)
