Discontinued

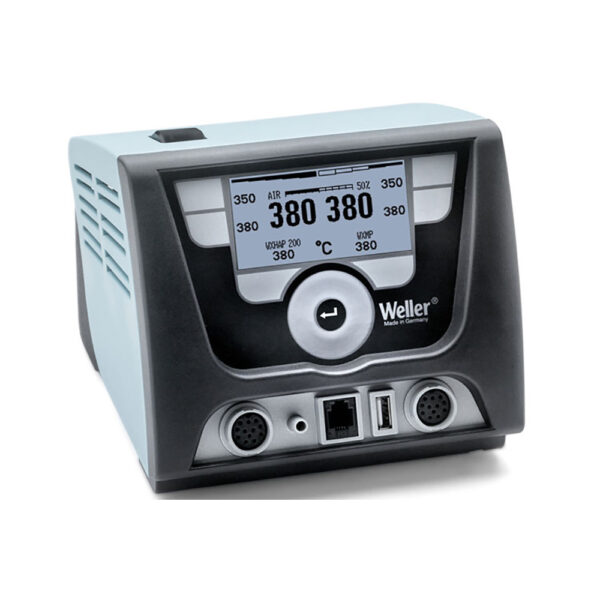

Weller WXA2N 2 Channel Power Unit. Dimensions: 6.69” x 5.95” x 5.12” Voltage: 230V Heating Output: 200W Temperature Range: 150F – 999F(50C – 550C) Temperature Accuracy: 17F(9C) Air Consumption: l/min 20 Temperature Accuracy Hot Air: 54F(30C)
Discontinued
Weller WXA2N 2 Channel Power Unit is for operation with external compressed air and is ESD-safe. The WXA2N features equipotential balance, intelligent tool detection, and unit data traceability aswell as a USB interface. In the WXA2N, the amount of air can be controlled using the rotary knob. The Weller WXA2N 2 Channel Power Unit has 3 separate operating modes, Operating mode level 1 the air flow continues for as long as the button on the hot-air iron or foot switch is pressed. Operating mode level 2 if the button is pressed once, the hot-air flow continues for between 0 and 300 seconds, stopping at the end of the set time. Operating mode level 3 the WXHAP 200 switches on with one press of the button and off with the second press.
Dimensions | 6.69'' x 5.95'' x 5.12'' |
---|---|
Voltage | 230V |
Heating Output | 200W |
Temperature Range | 150F – 999F(50C – 550C) |
Temperature Accuracy | 17F(9C) |
Air Consumption | l/min 20 |
Dimensions | 6.69'' x 5.95'' x 5.12'' |
---|---|
Voltage | 230V |
Heating Output | 200W |
Temperature Range | 150F – 999F(50C – 550C) |
Temperature Accuracy | 17F(9C) |
Air Consumption | l/min 20 |
