Discontinued

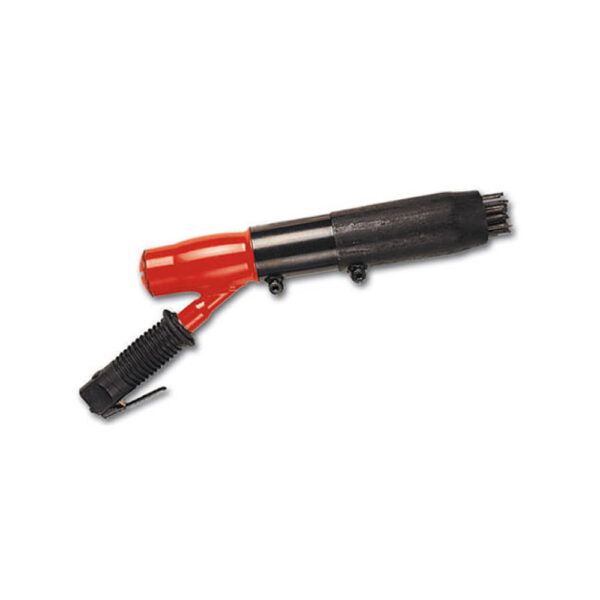

B21M Chicago Pneumatic Needle Scaler. Part Number: 615 174 0410 Bore: 1.3” / 33mm Stroke: 1-15/16” / 49.2mm Needle Capacity: 35×5/32” (4) QtyxO Blows Per Minute: 2,200blows/min Power: 15.9joule Air Cons. at Load: 8.5cfm / 4.0l/s
Discontinued
B21M Chicago Pneumatic Needle Scaler The B21M Chicago Pneumatic Needle Scaler features a cushion grip design for better operator comfort and offers the highest power on the range. This needle scaler has the possibility to convert into 49×1/8” (3mm). The B21M Chicago Pneumatic Needle Scaler features a high material removal rate and the semi pistol design increase ergonomics for the high power output. This needle scaler features an adjustable barrel to extend needle life.
| Model Number | B21M |
|---|---|
| Part Number | 615 174 0410 |
| Bore | 1.3'' / 33mm |
| Stroke | 1-15/16'' / 49.2mm |
| Needle Capacity | 35×5/32'' (4) QtyxO |
| Blows Per Minute | 2, 200blows/min |
| Power | 15.9joule |
| Air Cons. at Load | 8.5cfm / 4.0l/s |
| Weight | 12.4lb / 5.6kg |
| Length | 19.1'' / 484mm |
| Vibration Level | ISO 28927(M/S2) 31.5a / 6.7k |
| Sound Press/Power | 104 / 115 ISO 15744-dB(A) |
| Air Inlet | 1/4'' |
| Model Number | B21M |
|---|---|
| Part Number | 615 174 0410 |
| Bore | 1.3'' / 33mm |
| Stroke | 1-15/16'' / 49.2mm |
| Needle Capacity | 35×5/32'' (4) QtyxO |
| Blows Per Minute | 2, 200blows/min |
| Power | 15.9joule |
| Air Cons. at Load | 8.5cfm / 4.0l/s |
| Weight | 12.4lb / 5.6kg |
| Length | 19.1'' / 484mm |
| Vibration Level | ISO 28927(M/S2) 31.5a / 6.7k |
| Sound Press/Power | 104 / 115 ISO 15744-dB(A) |
| Air Inlet | 1/4'' |
